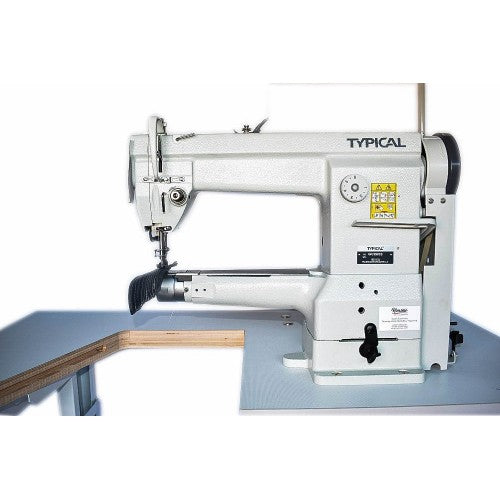

Typical GC2603 - Industrial Walking Foot Machine with Cylinder Arm

TYPICAL GC-2603

The Typical GC2603 is a cylinder arm, single needle lockstitch machine with compound feed, walking foot and enlarged 1.4x hook & base.

It features a heavy duty triple feeding action by way of bottom feed, needle bar feed and walking foot top feed, which combine together to produce high quality seams.

The versatile narrow cylinder free-arm design guarantees improved material handling on three dimensional items like bags, gloves, shoes, straps, filters and other such items which cannot be sewn on a standard flat bed machine.

The Typical GC2603 is of a robust construction for industrial heavy duty use and has a push down reverse lever and a rotary stitch length adjuster.

TECHNICAL SPECS:

Max Sewing Speed:  1800 Stithes per Minute

Max Stitch Length:  6 mm

Presser Foot Lift:  13 mm by Knee, 6.5 mm by Hand

Clearance Under The Arm :120mm x 260mm

Needle Type (Recommended Sizes):  DP x 17 (#18 to #24)

Rotating Hook:  LARGE Hook

Thread Sizes:  Up to Tex 138

MACHINE SETUP:

This Machine is Supplied disassembled

It includes:

Machine Head

Table Top

Heavy Duty Stand

Comes with standard Clutch Motor

Manuals

Extra needles, bobbins, and tools.

Additional Charge for Servo Motors
