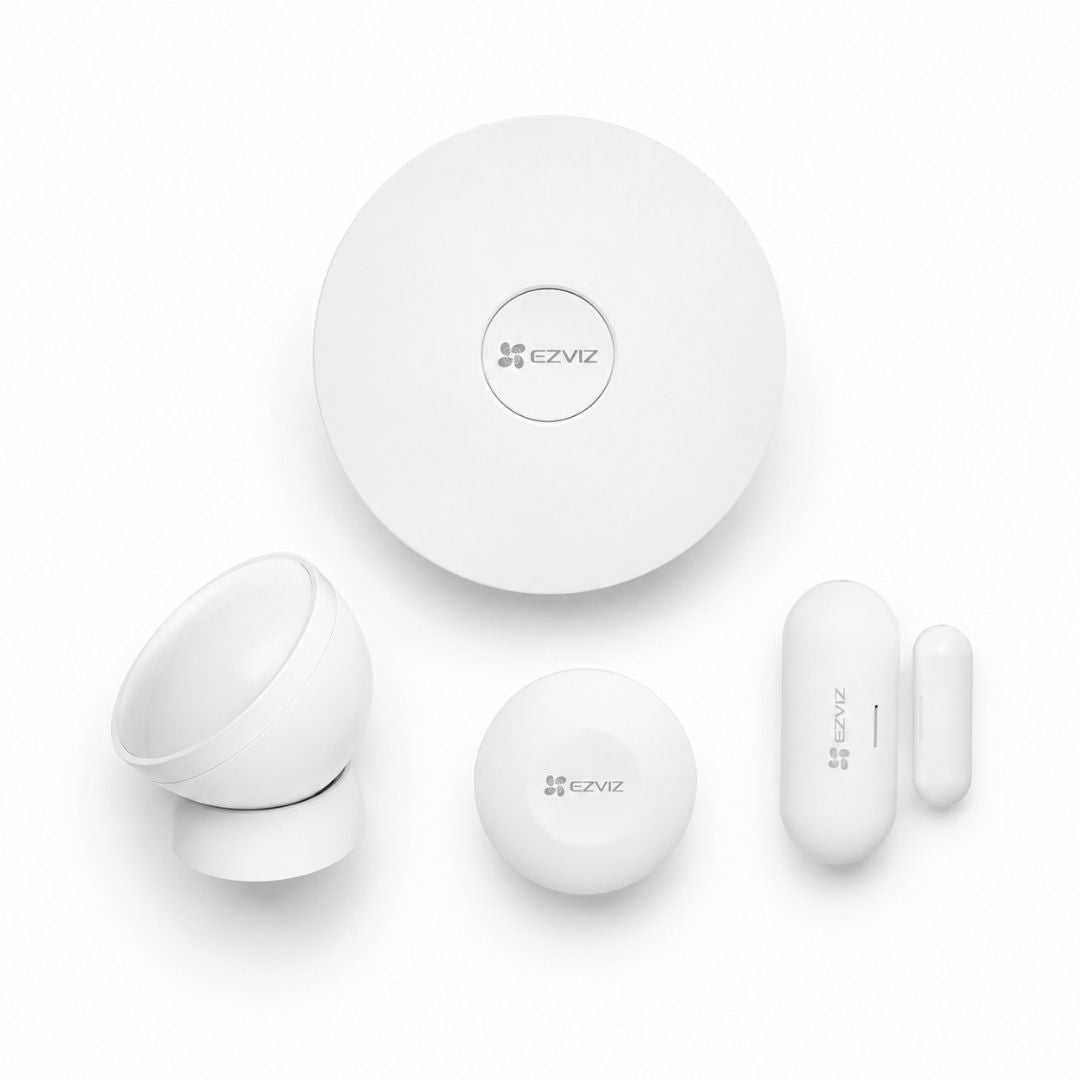

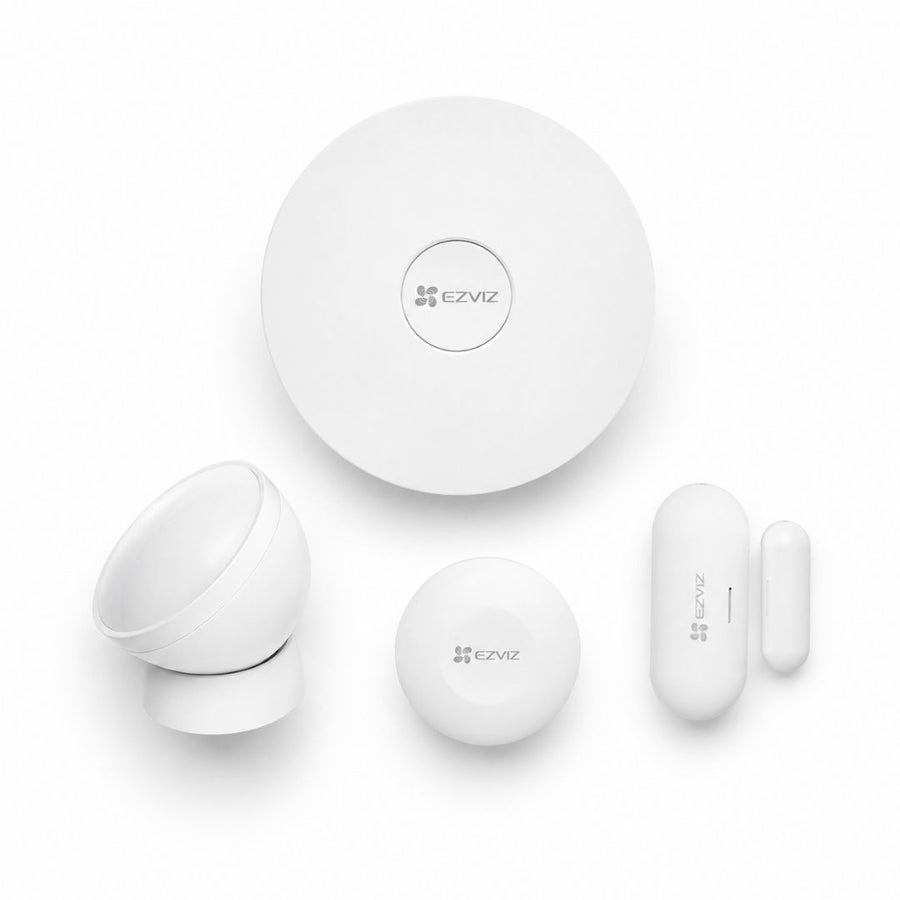

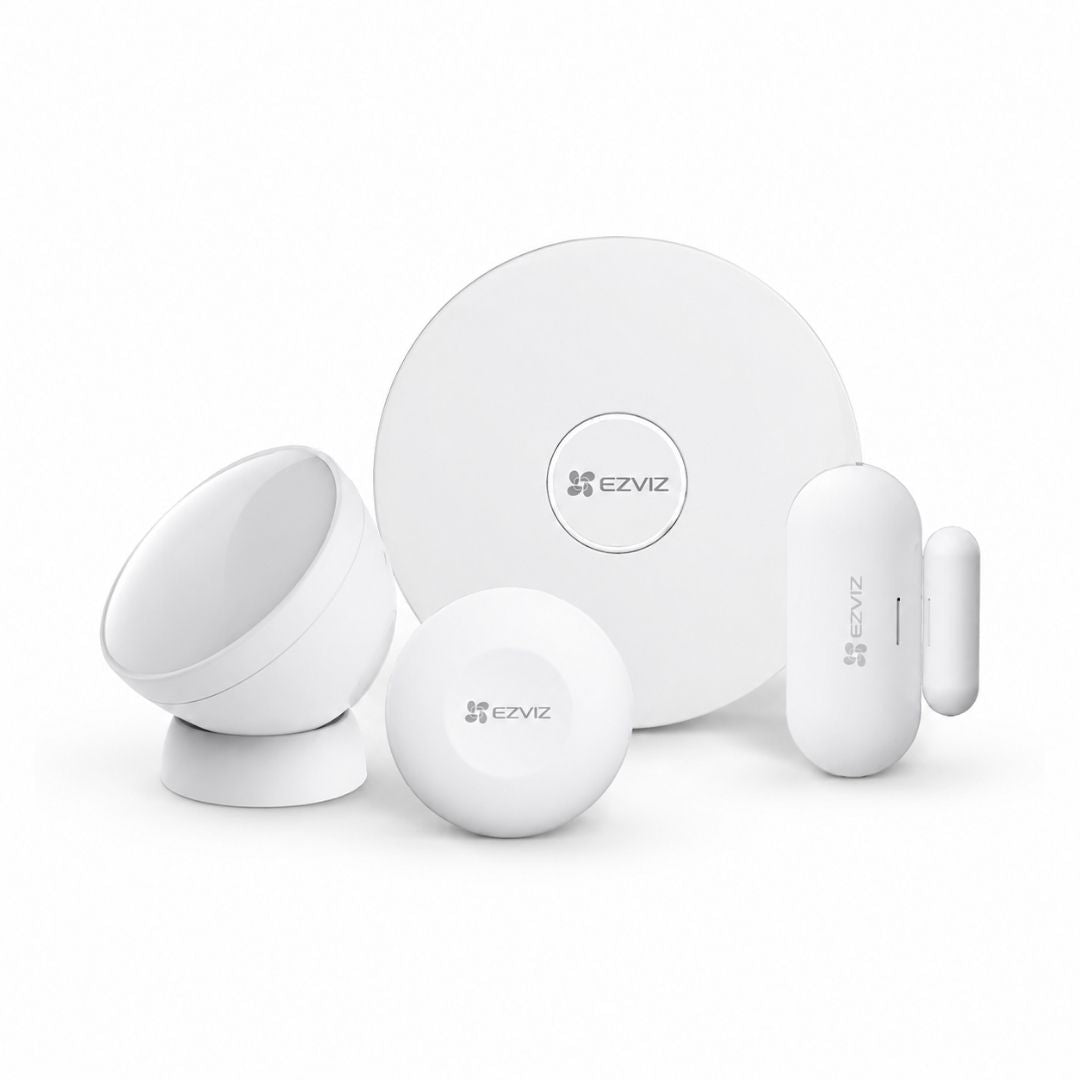

EZVIZ B1 - 4 Piece Home Sensor Kit

Create a connected home-security system with the EZVIZ B1 4‑Piece Home Sensor Kit. This complete starter kit includes a central home gateway, PIR motion sensor, door/window sensor and multifunction smart button.

Control and monitor the system through the EZVIZ app. Receive instant notifications when movement is detected or a protected door or window opens, set operating schedules, and arm or disarm the system remotely.

Included Devices:

• A3 Home Gateway
• T1C PIR Motion Sensor
• T2C Open/Close Sensor
• T3C Smart Button

Key Features:

• Easy setup and control through the EZVIZ app
• Instant mobile alerts when activity is detected
• Scheduled or manual system arming and disarming
• Zigbee 3.0 communication between the gateway and sensors
• Gateway supports 2.4GHz Wi‑Fi or wired Ethernet
• Choice of 20 gateway alarm sounds
• Peel-and-stick sensor installation
• Low-battery notifications
• Anti-tamper alerts
• Energy-efficient battery-powered sensors
• Compatible EZVIZ camera integration
• Compatible with selected Amazon Alexa and Google Assistant features

T1C PIR Motion Sensor:

• Passive infrared motion detection
• Detection distance up to 7 metres
• 90° horizontal and vertical detection angle
• Adjustable magnetic mounting base
• Included pet shield helps reduce pet-triggered alerts
• Recommended installation height: 1.8 to 2.5 metres
• CR2450 battery
• Battery life up to two years in energy-saving mode

T2C Open/Close Sensor:

• Suitable for doors, windows and cupboards
• Sends an alert when the two sensor sections separate
• Peel-and-stick installation
• Low-battery and anti-tamper alerts
• Powered by two CR1632 batteries
• Battery life up to two years under standard usage

T3C Smart Button:

• Arm or disarm the sensor system
• Can operate as an emergency assistance button
• Supports single-click, double-click and long-press actions
• Peel-and-stick installation or portable placement
• Powered by one CR2032 battery
• Battery life up to two years under standard usage

A3 Gateway Specifications:

• Model: CS-A3-A0-W
• Network: 2.4GHz Wi‑Fi or RJ45 Ethernet
• Sensor protocol: Zigbee 3.0
• Compatible-device capacity: Up to 32 supported battery-powered devices
• Power input: Micro-USB, 5V/1A
• Maximum power consumption: 3W
• Dimensions: 7 × 7 × 2.54cm
• Net weight: 71g

What’s in the Box:

• A3 Home Gateway
• A3 power adapter
• A3 USB power cable
• T1C PIR Sensor
• T1C pet shield
• T2C Open/Close Sensor
• T3C Smart Button
• Three double-sided adhesive strips
• Regulatory information
• Quick-start guide

Important: The A3 Gateway requires continuous power. Batteries for the three sensors are included. Camera integration depends on the EZVIZ camera model and firmware version, so compatibility should be confirmed before linking another camera or purchasing additional sensors.
