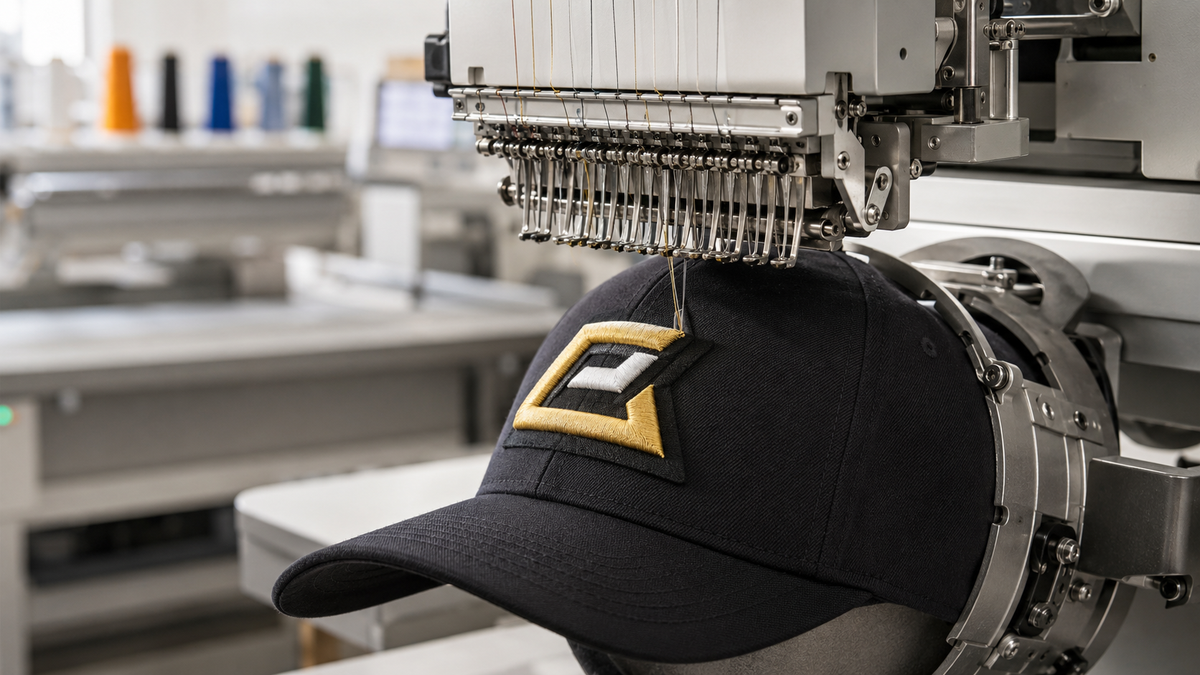

How to Do 3D Puff Embroidery on a Single-Head Embroidery Machine

3D puff embroidery is one of the most effective ways to make a logo, name or piece of lettering stand out. Instead of stitching the design flat against the fabric, the machine stitches over a layer of specialised embroidery foam. The stitches perforate and trap the foam, producing a raised, three-dimensional finish.

The technique is especially popular for baseball caps, snapbacks, jackets, bags, schoolwear, sportswear and corporate branding. It can also help an embroidery business offer a more premium finish than standard flat embroidery.

Although the physical process is simple, professional 3D embroidery depends on four things working together:

1. A design that has been digitised specifically for 3D puff

2. Foam that suits the design and thread colour

3. Stable hooping and correct machine preparation

4. Careful testing before production

This guide focuses on commercial single-head, multi-needle embroidery machines. Button names, file formats, cap frames and settings differ between brands, so always check the operating manual for your particular machine.

Important: Do not place standard craft foam, packaging foam or an ordinary flat-embroidery design under the needle and expect a professional result. Use embroidery-grade puff foam and a file created specifically for the technique.

What Is 3D Puff Embroidery?

3D puff embroidery, also called 3D foam embroidery, uses a layer of foam underneath dense satin stitches. As the machine sews, the needle penetrates the foam along the edges of the design. The excess foam is peeled away after stitching, leaving foam enclosed beneath the thread.

The thread forms the visible surface, while the foam creates height and shape. When done correctly, the result is clean, firm and rounded, with very little foam visible between the stitches.

3D puff works best on bold shapes such as:

• Capital letters

• Numbers

• Initials and monograms

• Thick borders

• Simple badges

• Bold geometric logos

• Selected sections of a larger logo

It is less suitable for:

• Very small lettering

• Thin lines

• Fine outlines

• Detailed faces or photographic designs

• Tiny gaps and sharp internal corners

• Large, wide areas that would normally require a fill stitch

• Designs with many overlapping elements

Not every part of a logo needs to be raised. A highly effective approach is to combine flat embroidery with one or two 3D elements. For example, stitch a background, small wording or fine details flat, then use foam only for the main name or emblem.

What You Need

Prepare everything before loading the job onto the machine.

• A commercial single-head embroidery machine in good working order

• The correct hoop, cap frame or clamping system

• A design digitised specifically for 3D puff embroidery

• Embroidery-grade puff foam, usually around 2–3 mm thick

• 40-weight polyester embroidery thread as a dependable starting choice

• Suitable embroidery needles; an 80/12 sharp or embroidery needle is a common starting point for many cap-and-foam jobs

• Fresh bobbin thread

• The correct stabiliser for the garment

• Temporary embroidery-safe adhesive or low-tack tape, if needed to hold the foam away from the needle area

• Small scissors, snips or tweezers

• A test garment or a sample made from comparable fabric

• The machine manual and its oiling or maintenance instructions

Needle type, needle size, presser-foot clearance and stabiliser must suit the actual fabric as well as the foam. A setting that works on a firm structured cap may not work on a stretchy beanie or lightweight garment.

Step 1: Choose a Suitable Design

Good 3D embroidery begins with suitable artwork. Simplify the design before digitising it.

Look for strong, open shapes with enough width to contain raised satin stitches. Enlarge small text, open tight gaps and remove details that will disappear once the design is raised. If the original logo must remain unchanged, use flat embroidery for the delicate sections and reserve puff for the bolder areas.

Ask these questions before proceeding:

• Are the letters thick enough to hold foam?

• Are the gaps between letters wide enough to peel the foam away cleanly?

• Will the longest satin stitches remain within the safe limit for the machine and thread?

• Are there narrow tips where foam may escape?

• Do several raised objects overlap?

• Will the final design fit inside the safe sewing area of the selected hoop or cap frame?

When working with customer artwork, explain that a logo may require a puff-friendly version. Simplification is not a loss of quality; it is what allows the embroidered version to remain clean and recognisable.

Step 2: Digitise the File Specifically for 3D Puff

Digitising is the most important part of the process. A standard flat file usually contains the wrong density, underlay, endings and stitch sequence for foam.

Use Satin Stitches for Raised Areas

Most puff elements use satin columns because satin stitches travel from one side of the shape to the other and wrap over the foam. Large areas that are too wide for safe satin stitching should normally be redesigned, divided into narrower sections or kept as flat fill embroidery.

Do not simply increase the density of an unsuitable object. Excessive density can cause thread breaks, needle deflection, broken needles, hard embroidery and damage to the garment.

Increase Coverage Carefully

Puff embroidery generally requires closer stitch spacing than flat embroidery so the thread covers the foam. There is no universal density value. Foam thickness, column width, thread, fabric, needle, machine and software all affect the result.

Use the digitising software's dedicated 3D foam or puff settings when available. Otherwise, begin with the software or machine manufacturer's recommended settings and refine them through test sewing. If foam is visible, the answer may be improved edge penetration, better capping, suitable foam thickness or a small density adjustment—not simply maximum density.

Control the Stitch Direction

The stitch angle affects the shape and strength of the finished puff. Satin stitches should cross the foam in a direction that supports the intended raised shape. Smooth angle changes can create a rounded appearance; abrupt or badly planned changes can create gaps and bunching.

On lettering, treat each stroke carefully rather than relying blindly on automatic lettering conversion. Curves, corners and intersections often require manual attention.

Seal Open Ends

Open ends are a common reason foam sticks out of letters. The digitiser must close or “cap” the ends with extra penetrations so the foam is cut and contained.

Good capping is particularly important on letters such as T, L, E, F and the tips of V or N shapes. Corners and narrow ends may need short edge stitches or carefully placed manual penetrations. The goal is to perforate the foam cleanly without creating a solid lump of thread.

Be Careful With Underlay

Standard edge-run or zigzag underlay can flatten the foam before the top stitches cover it, and it may create visible channels. Many raised satin objects therefore use reduced, specialised or no conventional underlay.

This does not mean the entire design should be unsupported. Flat sections may still need their normal underlay, and the garment itself still needs the correct stabiliser. Follow the puff tools and recommendations in the digitising software, then confirm the result with a sample.

Add the Correct Stops and Stitch Order

The design must tell the operator when to place the foam. A typical sequence is:

1. Stitch all flat elements that sit underneath or away from the puff area.

2. Stop the machine or move to a dedicated colour block.

3. Place the foam over the required area.

4. Stitch the 3D puff elements.

5. Complete any remaining elements only if they do not crush or interfere with the raised work.

Avoid stitching ordinary flat details over a completed puff area unless the design has been deliberately digitised for that effect. Repeated needle penetrations can compress the foam or produce an untidy finish.

Check the Design at Slow Simulation Speed

Before exporting, view the design stitch by stitch in the software. Check:

• The first and final needle penetrations of each puff object

• Capped ends and corners

• Stitch direction

• Short stitches in tight areas

• Unnecessary jumps and trims

• Colour stops

• Overlaps between flat and raised objects

• The longest satin stitch

• Total design size and position

Save the editable source file as well as the machine file. If the test fails, you will need the editable version to correct the objects properly.

Step 3: Select the Correct Foam

Use foam manufactured for machine embroidery. It is designed to tear away along the needle perforations.

Puff foam is available in different colours and thicknesses. A thickness of about 2–3 mm is common, but the correct choice depends on the design. Thin columns generally suit thinner foam, while a bolder design may accommodate thicker foam.

Match the foam colour as closely as possible to the thread. If small pieces remain visible, matching colours make them far less noticeable. White foam under black thread, for example, can show through even a small opening.

Before production, test the exact foam, thread and file together. A file adjusted for one foam thickness may not cover or cut a thicker foam correctly.

Step 4: Prepare the Machine

3D puff places more resistance under the needle than ordinary flat embroidery, so the machine must be correctly maintained.

Before starting:

• Clean the hook and bobbin area.

• Remove lint and old thread pieces.

• Oil the machine exactly as specified in its manual.

• Install an undamaged needle suitable for the material.

• Check that the needle is inserted in the correct direction and at the correct height.

• Confirm the upper-thread path and tensioners are threaded correctly.

• Insert a properly wound bobbin.

• Check the bobbin tension using the method recommended by the machine manufacturer.

• Ensure the hoop or cap frame is securely attached.

• Confirm that the design fits inside the machine's safe sewing field.

Do not alter hook timing, needle-bar height or major mechanical settings as a first response to a poor puff test. Rule out digitising, hooping, needle, thread, foam and tension problems first. Mechanical adjustments should be performed by a trained technician.

Step 5: Stabilise and Hoop the Item Correctly

The garment must remain stable while the needle repeatedly penetrates the same edges. Movement causes registration errors, distorted letters, gaps and needle breaks.

Flat Garments

For shirts, jackets, panels and bags:

1. Select a stabiliser suitable for the fabric and design density.

2. Mark the centre and orientation of the embroidery.

3. Hoop the garment and stabiliser smoothly without stretching the fabric out of shape.

4. Tighten the hoop enough to prevent movement, but do not crush or permanently mark the garment.

5. Keep excess garment fabric away from the sewing field.

A stable woven fabric may work with suitable tear-away backing, while stretchy, soft or unstable fabric will often need cut-away backing. Thick or textured fabric may also benefit from a water-soluble topping for the flat portions, although topping and foam serve different purposes.

Caps

Caps are the most common 3D puff product, but they require careful framing.

1. Use the cap driver, cap frame and gauge intended for the machine.

2. Open the back closure and move the sweatband out of the sewing area where possible.

3. Smooth the front panel and remove slack.

4. Align the centre seam and design centre carefully.

5. Secure the cap firmly according to the frame instructions.

6. Check that clips, straps, seams and the peak will not collide with the needle or presser foot.

Structured caps often provide a firm sewing surface, but construction varies. Do not assume every cap can use the same backing or machine setting. Test the exact cap style you intend to sell.

For cap designs, embroidering from the centre outward often helps control registration, especially across the curved front panel. The exact sequence must be planned during digitising.

Step 6: Load and Position the Design

Transfer the correct machine-format file and select it on the control panel. Then:

1. Confirm the design dimensions.

2. Select the correct hoop or cap frame in the machine settings.

3. Assign each colour block to the correct needle.

4. Confirm that the machine will stop before the foam section.

5. Set the design origin.

6. Trace the outer boundary using the machine's frame-trace function.

7. Watch the entire trace to make sure the presser foot, needle and frame will clear all hardware and garment edges.

If the machine has a laser or camera, use it as an alignment aid, but still check the physical sewing boundary. Never rely only on the design preview.

Step 7: Run a Flat Placement or Foundation Section

If the file contains flat embroidery, sew that section first. The machine should then stop automatically at the programmed colour change or stop command.

Some puff files include a light placement outline to show where the foam belongs. Others move directly from flat elements to the puff section. Follow the file's intended sequence.

Do not leave automatic colour sequencing unchecked. Confirm that the machine stops before it begins the raised stitches. If it continues without stopping, stop the machine and correct the colour sequence or operating mode before proceeding.

Step 8: Place the Foam Safely

Cut a piece of foam large enough to cover the entire raised area, with a reasonable margin around the design. It should not extend into cap-frame hardware or other obstructions.

Place the foam flat over the design area. If necessary, secure its outer edges with small pieces of low-tack tape or a light, embroidery-safe temporary adhesive. Keep tape, fingers and tools away from the actual stitching path.

Safety warning: Never place your fingers near the needle, presser foot or moving frame while the machine is running. If the foam moves, stop the machine before repositioning it. Using tape outside the design area is safer than trying to hold foam beside a moving needle.

Move the frame slowly by hand control, if your machine supports this safely, to confirm that the foam will remain clear of the machine's hardware.

Step 9: Sew the 3D Section

For the first test, run the machine more slowly than your normal flat-embroidery speed. Around 500–600 stitches per minute is a commonly recommended starting range for many commercial machines, but the correct speed depends on the machine, cap frame, design, foam and garment.

Watch and listen carefully during the first sew-out. Stop immediately if you notice:

• Repeated thread breaks

• Needle deflection

• The needle striking the frame

• Foam lifting or shifting excessively

• The garment becoming loose

• Loops forming on top

• Thread nesting underneath

• Unusual knocking or scraping sounds

• The design approaching an unsafe edge

Do not increase speed until the file has sewn cleanly and consistently. Production speed is earned through successful testing; it should not be guessed.

Step 10: Remove the Excess Foam

When the design is complete:

1. Allow the machine to finish trimming and move to a safe position.

2. Stop the machine fully.

3. Remove the hoop or cap frame according to the manufacturer's instructions.

4. Gently tear the excess foam away from the stitching.

5. Pull in the direction that allows the perforated edge to separate cleanly.

6. Use tweezers to remove small pieces without pulling the thread.

7. Trim loose thread tails carefully.

If tiny foam fibres remain, many embroiderers use brief, controlled warmth to shrink them. This must be done cautiously and only after testing the foam, thread and garment. Too much heat can melt polyester thread, scorch fabric, distort a cap, damage coatings or permanently mark the embroidery. A hair dryer on a controlled setting is generally less aggressive than an open flame.

Never use an open flame near the garment, thread, foam, machine, solvents or adhesive.

Step 11: Inspect the Finished Embroidery

Do not judge the sample only from a distance. Inspect it closely under good lighting.

Check that:

• The foam is fully covered.

• The raised height is even.

• Open ends are sealed.

• Corners are clean.

• Small pieces of foam are not protruding.

• The thread surface is smooth and not excessively tight.

• Flat and raised sections remain registered.

• The garment is not puckered or damaged.

• There are no loops or nests on the back.

• The design is centred and level.

Photograph and label approved samples. Record the machine, file version, garment, hoop, stabiliser, foam, needle, thread, tension observations and speed. This turns a successful test into a repeatable production recipe.

Recommended Starting-Point Checklist

The values below are starting points, not universal rules.

Avoid changing several variables after a failed sample. Change one factor at a time, sew another sample and record the result.

Troubleshooting Common 3D Puff Problems

Foam Is Visible Between the Stitches

Possible causes:

• The file was digitised for flat embroidery.

• Stitch spacing is too open for the foam and thread combination.

• The foam is too thick for the satin-column width.

• The foam colour contrasts strongly with the thread.

• Corners or ends are not properly capped.

• The foam moved during sewing.

Solutions:

• Redigitise or edit the raised objects specifically for puff.

• Test a suitable puff density instead of adding uncontrolled extra stitches.

• Use thinner foam or redesign narrow columns.

• Match the foam to the thread colour.

• Add correct edge penetrations and capped ends.

The Design Looks Flat

Possible causes:

• The foam is too thin.

• Conventional underlay has compressed the foam.

• Later stitch objects have sewn over and flattened the raised section.

• Thread tension or density is excessive.

• The satin columns are too narrow to show useful height.

Solutions:

• Test a foam thickness that suits the design.

• Review underlay and stitch order in the source file.

• Reduce unnecessary repeated penetrations.

• Check tension balance before altering the design blindly.

Foam Protrudes From Letter Ends

Possible causes:

• Ends were left open.

• There are too few edge penetrations.

• The satin direction does not cut the foam cleanly.

• The foam is too thick for the object.

Solutions:

• Add properly digitised caps to open ends.

• Refine corners and endpoints manually.

• Test thinner foam.

• Use matching foam so tiny remnants are less visible.

Frequent Thread Breaks

Possible causes:

• The design is too dense.

• There are too many short stitches in corners.

• The needle is damaged, bent, incorrectly fitted or unsuitable.

• The machine is running too fast.

• Upper or bobbin tension is incorrect.

• The thread path is obstructed.

• The hook or needle plate contains a burr.

Solutions:

• Slow the machine and inspect where the break occurs.

• Review stitch density, shortening and corner construction.

• Fit a fresh, suitable needle.

• Rethread the needle completely.

• Clean the bobbin area and check the bobbin.

• Ask a technician to inspect suspected burrs or mechanical faults.

Needles Bend or Break

Stop the machine immediately.

Possible causes include excessive density, long or badly angled stitches, a loose cap, incorrect frame selection, hoop collision, a damaged needle, incorrect needle installation or a mechanical timing problem.

Do not keep restarting after repeated needle breaks. Remove the cause first. Broken needle fragments can cause injury and may damage the hook, bobbin case, needle plate or garment.

The Design Shifts Out of Registration

Possible causes:

• Loose hooping or poor cap framing

• Insufficient stabilisation

• Fabric stretch

• An unsecured cap seam or sweatband

• Excessive machine speed

• Poor stitch sequence

• A loose frame connection

Solutions:

• Rehoop the item correctly.

• Use stabiliser suited to the material.

• Confirm all frame arms and clamps are locked.

• Reduce speed for the test.

• Review the centre-out sewing sequence on caps.

Thread Loops on Top or Nests Underneath

This is normally a threading, tension, bobbin, needle or machine-maintenance issue rather than a foam problem.

• Rethread the affected needle with the presser mechanism in the correct state.

• Check every thread guide and tensioner.

• Inspect and replace the needle if necessary.

• Clean and reinsert the bobbin correctly.

• Check for thread trapped around the hook.

• Follow the machine's approved tension-testing method.

3D Puff Embroidery on Caps Versus Flat Garments

Never approve one cap sample and assume the same file will sew identically on every cap brand. Panel stiffness, crown shape, centre-seam thickness and frame fit all change the result.

Production Tips for Embroidery Businesses

Keep a Job Sheet

Record:

• Customer and job number

• Design filename and revision

• Garment supplier, style and colour

• Design size and placement

• Hoop or cap-frame type

• Backing and foam specification

• Thread brand and colour numbers

• Needle size and type

• Machine speed

• Any tension or presser-foot observations

• Approved sample photograph

This prevents an operator from rebuilding the process from memory when the customer reorders.

Price the Technique Properly

3D puff embroidery normally requires more than ordinary stitch-count pricing. Allow for:

• Specialist digitising

• Foam and test materials

• Longer setup time

• Slower production speed

• Manual foam placement and removal

• Extra finishing and inspection

• The risk of rejected samples while developing the file

A practical quotation can include a once-off digitising or setup charge plus a per-item embroidery price. Complex logos and mixed flat-and-puff designs should be quoted after the artwork has been assessed.

Approve a Physical Sample

Computer previews cannot fully show thread coverage, cap movement, foam height or the effect of seams. For larger orders, obtain approval on an actual sample or clearly state the sampling and artwork-approval process in the quotation.

Do Not Skip Maintenance

Lint, worn needles, poor lubrication and damaged thread paths create downtime. Follow the machine's maintenance schedule and keep a record of daily, weekly and periodic tasks. Use only the oils and procedures specified by the manufacturer.

Frequently Asked Questions

Can any embroidery machine do 3D puff embroidery?

Many commercial single-head embroidery machines can sew 3D puff when they have suitable clearance, correct frames and a properly digitised file. However, capability and settings differ. Check the machine manual or ask the supplier before adjusting the presser foot or running thick materials.

Can I use a normal embroidery file with foam?

Usually not. A flat file may have open ends, unsuitable underlay, insufficient coverage and the wrong stitch sequence. The raised sections should be digitised specifically for puff.

What thickness of foam should I use?

Embroidery foam around 2–3 mm is common, but thickness must match the width and construction of the design. Always test the exact foam with the exact file.

Should the foam match the thread?

Yes, whenever possible. Matching colours hide tiny remnants and make the finished embroidery look cleaner.

What thread works best for 3D embroidery?

Quality 40-weight polyester embroidery thread is a dependable starting choice for many commercial jobs. The final choice must suit the machine, needle, design and garment.

What speed should I use?

Start conservatively. Approximately 500–600 stitches per minute is a useful test range on many commercial machines, but not a rule. Reduce speed if the design, cap frame or material is unstable, and follow the machine manufacturer's guidance.

Why does my 3D embroidery keep breaking needles?

Common causes include excessive density, long satin stitches, poor cap framing, hoop collision, a damaged or incorrect needle, unsuitable foam or a mechanical issue. Stop and inspect the cause; repeated restarts can damage the machine.

Can 3D puff be washed?

Well-made puff embroidery can be durable, but care depends on the garment, thread and foam. Follow the garment's care label, avoid excessive heat and test the finished product before making a durability claim to customers.

Is 3D puff only for caps?

No. It can also be used on jackets, bags, hoodies, patches and other sufficiently stable materials. The garment must be hooped and stabilised correctly, and the design must suit the surface.

Final 3D Puff Embroidery Checklist

Before pressing Start, confirm:

• The artwork is suitable for raised embroidery.

• The file was digitised specifically for 3D puff.

• The raised areas use suitable satin columns.

• Open ends and corners are properly capped.

• The file contains the correct stop for foam placement.

• Foam thickness and colour match the test specification.

• The needle is fresh and suitable.

• The machine is clean, threaded and maintained.

• The item is securely hooped or framed.

• The correct frame is selected on the machine.

• The design has been traced inside the safe sewing area.

• Hands, tools and loose fabric are away from the needle path.

• The first sew-out will run at a conservative speed.

• A complete sample will be approved before production.

Conclusion

Professional 3D puff embroidery is not created by foam alone. The raised effect comes from the complete process: selecting suitable artwork, digitising every puff object correctly, matching the foam to the design, securing the garment, preparing the machine and testing before production.

Take time to perfect one simple design first. Use bold lettering, one foam colour and a stable cap or fabric. Record every setting, correct one issue at a time and keep the approved sample. Once the process is repeatable, move on to mixed flat-and-puff logos, multiple colours and more challenging garments.

Need Help Choosing a Single-Head Embroidery Machine?

Ahmeds Textiles supplies embroidery machines, threads, accessories and practical support for customers starting or growing an embroidery business. Our team can help you compare machine sizes, needle configurations, embroidery areas and cap capabilities based on the products you want to make.

Visit Ahmeds Textiles online at ahmeds.co.za or contact our team for advice on embroidery machines, training, accessories and after-sales support.

Machine procedures vary by model. Always follow the operating, maintenance and safety instructions supplied by the manufacturer of your embroidery machine.
